A crucial aspect of CNC routing is finding and picking the right CNC router bit for a particular project. If you are new to this, then you might not even know the different types available out there.
To help you out with that, we have prepared this detailed guide on 10 common CNC router bits in engineering manufacturing. These bits are used very commonly in different manufacturing scenarios. Go through them and you will know which one is the right fit for your project needs.
What is a CNC Router Bit?
A CNC router bit is a cutting tool designed to work with CNC routers, machines that use computer-controlled movements to cut, carve, and shape materials. These bits come in various shapes, sizes, and materials, each tailored for specific applications and materials.
10 Types of CNC Router Bits in Manufacturing
Understanding these bits is crucial for achieving optimal results in your projects. Let’s dive into 10 common CNC router bits:
1. Straight Router Bit
The straight router bit is the workhorse of CNC routing, ideal for creating straight cuts, grooves, and channels in various materials.
Features:
- Straight cutting edge for precise material removal
- Available in various diameters and lengths
- Suitable for cutting grooves, dadoes, and mortises
- Can perform both plunge and edge-cutting operations
Pros:
- Versatile for a wide range of applications
- Produces clean, square-bottomed cuts
- Ideal for creating straight-sided channels
- Allows for high feed rates in softer materials
- Suitable for both handheld and CNC routing
Cons:
- May produce more heat than spiral bits in certain materials
- Can cause tear-out in some wood species if not used properly
2. Carbide Spiral CNC Router Bit
Carbide spiral bits are known for their efficiency in chip evacuation and clean cutting in various materials, making them popular for high-speed CNC operations.
Features:
- Spiral flutes for efficient chip evacuation
- Made from durable carbide material for extended tool life
- Available in upcut, downcut, and compression configurations
Pros:
- Reduces heat build-up during cutting
- Provides a superior edge finish compared to straight bits
- Offers longer tool life in abrasive materials
- Allows for higher feed rates without sacrificing quality
- Minimizes vibration and chatter during operation
Cons:
- More expensive than standard HSS bits
- May require higher horsepower for optimal performance
3. Roundover Router Bit
Roundover bits are perfect for creating smooth, rounded edges on workpieces, enhancing both aesthetics and safety.
Features:
- Curved cutting edge for creating rounded edges
- Often includes a ball bearing guide for consistent depth
- Available in various radii to suit different applications
Pros:
- Reduces the need for post-processing sanding
- Enhances safety by eliminating sharp edges
- Allows for consistent round-over profiles along edges
- Ideal for both decorative and functional applications
- Can be used to create beading effects when inverted
Cons:
- Limited to round-over profiles only
- May require multiple passes for larger pieces
4. Flush Trim Router Bit
Flush trim bits are essential for template work and trimming materials flush with a guide surface, ensuring precise replication of shapes and profiles.
Features:
- Straight cutting edge with a ball bearing guide
- Designed to trim excess material flush with a template or existing edge
- Available in various lengths and diameters
Pros:
- Enables precise template-based routing
- Reduces the need for post-routing sanding
- Allows for efficient production of multiple identical pieces
- Can be used for both edge trimming and pattern inlay work
- Minimizes errors in replicating complex shapes
Cons:
- Requires a template or guide surface for operation
- May cause tear-out if used against the grain in certain woods
5. Chamfer Router Bit
Chamfer bits are used to create angled edges and bevels on workpiece corners, adding a professional finish to your projects.
Features:
- Angled cutting edge for creating bevelled edges
- Often includes a ball bearing guide for consistent depth
- Available in various angles (e.g., 45°, 30°, 60°)
Pros:
- Improves safety by removing sharp corners
- Enhances the aesthetic appeal of finished products
- Useful for creating decorative V-grooves
- Can be used for countersinking screws
- Allows for quick and efficient edge treatment
Cons:
- Limited to specific chamfer angles
- May require multiple passes for wide chamfers
6. Cove Router Bit
Cove bits are designed to cut concave profiles along edges, ideal for creating decorative mouldings and adding elegant details to your workpieces.
Features:
- Concave cutting edge for creating rounded inward curves
- Often includes a ball bearing guide for consistent depth
- Available in various radii and depths
Pros:
- Enhances the decorative potential of woodworking projects
- Allows for the creation of custom moulding profiles
- Can be combined with other bits for complex edge treatments
- Ideal for creating finger pulls in cabinetry
- Useful for both interior and exterior curve applications
Cons:
- Limited to cove profiles only
- May require multiple passes for deeper coves

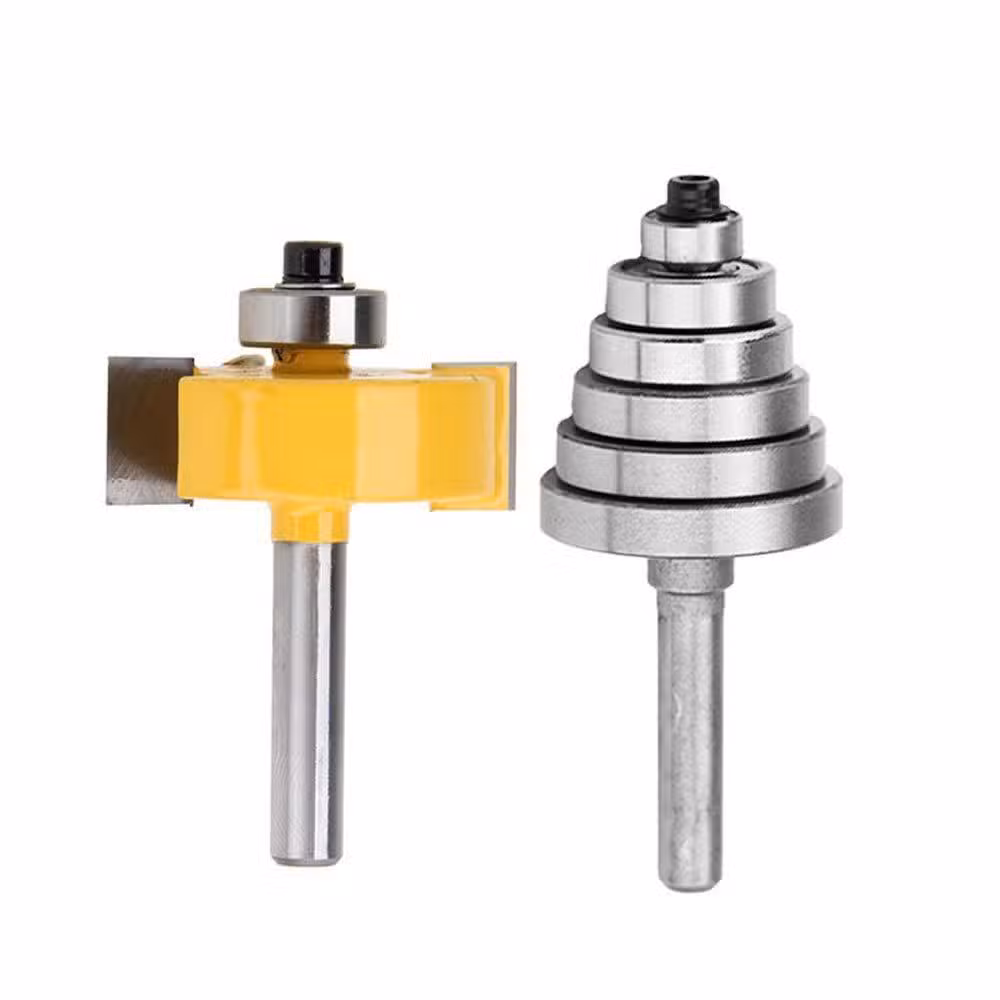

7. Rabbeting Router Bit
Rabbeting bits are specialized for cutting rabbet joints in woodworking and cabinetry, essential for creating strong, professional-looking connections.
Features:
- Straight cutting edge with a pilot bearing
- Designed to cut a rectangular groove along the edge of a workpiece
- Available in various widths and depths
Pros:
- Creates precise rabbet joints for strong connections
- Allows for easy adjustment of rabbet width by changing the pilot bearing
- Ideal for inset panel construction
- Can be used for creating shiplap joints
- Enables efficient production of consistent rabbet cuts
Cons:
- Limited to rabbet profiles only
- May require multiple passes for wide or deep rabbets
8. Roman Ogee Router Bit
Roman Ogee bits create decorative S-shaped profiles for elegant edge treatments, adding a touch of classical design to your projects.
Features:
- S-shaped cutting edge for creating decorative profiles
- Often includes a ball bearing guide for consistent depth
- Available in various sizes and curve configurations
Pros:
- Adds sophisticated detail to edges of furniture and cabinetry
- Can be used to create custom picture frame moldings
- Enhances the perceived value of finished products
- Allows for the creation of unique, eye-catching profiles
- Suitable for both small and large-scale projects
Cons:
- Limited to specific ogee profiles
- May require careful feed rate control to avoid burning in hardwoods
9. Dovetail Router Bit
Dovetail bits are crucial for creating strong, interlocking dovetail joints in furniture making, known for their strength and aesthetic appeal.
Features:
- Angled cutting edge for creating dovetail joints
- Available in various angles and sizes
- Suitable for both male and female dovetail cuts
Pros:
- Creates joints with excellent tensile strength
- Allows for visually appealing exposed joinery
- Can be used for creating sliding dovetails for shelving
- Useful for making secure drawer fronts
- Enables efficient production of consistent dovetail joints
Cons:
- Requires precise setup for accurate joints
- Limited to specific joint profiles
10. V-Groove Router Bit
V-groove bits are ideal for engraving, creating V-shaped grooves, and adding decorative details to flat surfaces and edges.
Features:
- V-shaped cutting edge for creating angled grooves and chamfers
- Available in various included angles (e.g., 60°, 90°, 120°)
- Suitable for engraving and decorative edge profiling
Pros:
- Excellent for creating bevelled edges and chamfers
- Allows for variable depth engraving
- Ideal for sign-making and lettering applications
- Can create decorative V-grooved panels
- Useful for adding grip texture to surfaces
Cons:
- Limited to V-shaped profiles only
- May require careful depth control to avoid over-cutting
Common Types of Materials Used in Making CNC Router Bits
The choice of material significantly impacts the bit’s performance, durability, and suitability for different workpiece materials. Here are some common materials used in making CNC router bits:
High-Speed Steel (HSS)
HSS bits are widely used due to their affordability and versatility. They offer good wear resistance and can maintain their cutting edge at high temperatures. You’ll find HSS bits suitable for cutting wood, soft plastics, and non-ferrous metals.
Carbide
Carbide bits, particularly those made from tungsten carbide, are known for their exceptional hardness and wear resistance. When you’re working with abrasive materials or need to maintain tight tolerances over extended periods, carbide bits are an excellent choice. They excel in cutting hardwoods, composites, and some metals.
Cobalt Steel
Cobalt steel bits are an upgrade from HSS, offering improved heat resistance and durability. You’ll find these bits particularly useful when working with harder materials like stainless steel or titanium.
Diamond-Coated
For the most demanding applications, diamond-coated bits provide unparalleled hardness and wear resistance. When you’re working with highly abrasive materials like graphite, ceramics, or fibre-reinforced plastics, diamond-coated bits ensure long tool life and consistent performance.
Solid Carbide with Specialized Coatings
These bits combine the strength of carbide with advanced coatings like titanium nitride (TiN) or aluminum titanium nitride (AlTiN). The coatings enhance the bit’s wear resistance, reduce friction, and improve heat dissipation, making them ideal for high-speed machining of various materials.
Factors to Consider When Choosing CNC Router Bits
Selecting the right CNC router bit is crucial for achieving optimal results in your manufacturing projects. As you navigate the wide array of available options, consider the following factors to make informed decisions:
Workpiece Material
The material you’re cutting is perhaps the most critical factor in bit selection. Different materials require specific cutting geometries and bit materials to achieve optimal results. For instance, you’ll need different bits for cutting softwoods, hardwoods, plastics, or metals.
Cutting Operation
Consider the type of cut you need to perform. Are you roughing, finishing, or performing specialized operations like engraving or 3D contouring? Each operation may require a different bit type or geometry to achieve the desired results efficiently.
Bit Diameter
The diameter of the bit affects both the cutting speed and the level of detail you can achieve. Larger diameter bits remove material faster but may not be suitable for intricate designs. Smaller diameter bits allow for more detailed work but may require longer machining times.
Flute Configuration
The number and arrangement of flutes on a bit impact chip evacuation, cutting speed, and surface finish. Two-flute bits are often used for softer materials and faster feed rates, while multi-flute bits provide better surface finishes and are suitable for harder materials.
Bit Material and Coating
As discussed earlier, the material and coating of the bit affect its durability, heat resistance, and suitability for different workpiece materials. Consider the demands of your application and choose accordingly.
Cutting Speed and Feed Rate
Different bits are designed to operate at specific speeds and feed rates. Ensure that your CNC machine can accommodate the recommended parameters for the bit you choose to achieve optimal performance and tool life.
Depth of Cut
Consider the maximum depth of cut required for your project. Some bits are designed for shallow cuts, while others can handle deeper plunges. Matching the bit to your depth requirements ensures efficient material removal and reduces the risk of tool breakage.
Surface Finish Requirements
If your project demands a high-quality surface finish, consider bits with specialized geometries or coatings designed to minimize chatter and produce smooth surfaces.
Tool Life and Cost
While it may be tempting to opt for less expensive bits, consider the long-term costs associated with tool wear and replacement. Higher quality bits may have a higher upfront cost but can offer better performance and longer tool life, reducing overall expenses.
Do Not Worry About CNC Router Bits
You can say goodbye to all your worries about CNC router bits if you simply opt for a manufacturing service provider rather than doing it yourself. The best choice for you would be Zintilon.
They are exceptionally good when it comes to providing CNC router services. And with their in-house production capabilities, they will surely know which CNC router bit will be the perfect pick for your project.
When you partner with Zintilon, you gain access to:
- Cutting-edge CNC router technology and a vast array of high-quality router bits
- Expert machinists with extensive experience in various materials and cutting operations
- Customized solutions tailored to your specific project requirements
- Optimized machining strategies that balance speed, precision, and cost-effectiveness
- Comprehensive quality control measures to ensure consistent, high-quality output
Conclusion
In conclusion, CNC router bits are the unsung heroes of precision manufacturing, enabling you to transform raw materials into intricate, functional, and aesthetically pleasing products. Learning about the types helps you equip yourself with the perfect tools required for your particular job.
Our guide here should help you find out the right CNC router bit you need. And if you don’t want to bother about all that, you always have the option with Zintilon.
