What is the Difference Between Thread Tap and Thread Mill?

Threading is a crucial process in manufacturing, creating the internal or external screw threads that are found on countless mechanical parts. Two popular methods for creating these threads are thread tapping and thread milling.

Both processes are widely used but differ significantly in their approach, efficiency, and applications. Understanding the difference between thread taps and thread mills is essential for selecting the right tool for the job, whether you’re aiming for precision, speed, or cost-effectiveness.

In this article, we’ll dive deep into the differences between thread tapping and thread milling, comparing their features, pros, cons, and more, so you can make informed decisions based on your specific threading requirements.

What is Thread Tapping?

Thread tapping is a traditional machining process where a threaded tool, called a tap, is used to cut the internal threads of a hole. Taps are typically used with softer materials such as aluminum, steel, or plastics and are available in different varieties like hand taps, spiral taps, or machine taps depending on the threading application.

In thread tapping, the tap is fed directly into a pre-drilled hole, cutting the threads as they rotate. This process is widely used in manual and automated machining and is known for its simplicity and efficiency in creating standardised threads in a variety of workpieces.

Features of Thread Tapping

Thread tapping is one of the oldest and most widely used methods for cutting internal threads. Below are its primary features:

1. Simple Setup: Thread tapping requires minimal setup, making it easy to integrate into manual and automated machining operations.
2. Direct Thread Cutting: Taps directly cut into the material, forming the threads in a single operation.
3. Wide Availability: Thread taps come in various styles and sizes, including hand taps, machine taps, and spiral-point taps, making them versatile for different applications.
4. Specific to Internal Threads: Thread taps are primarily designed for cutting internal threads within pre-drilled holes.
5. Three Types of Taps: Bottoming taps, plug taps, and taper taps allow for versatility in thread tapping operations, accommodating different hole depths and starting positions.

Pros of Thread Tapping

Thread tapping offers numerous benefits, particularly when it comes to traditional machining applications. Some key advantages include:

1. Cost-Effective for Mass Production: Taps are typically less expensive than thread mills and are ideal for high-volume production, especially in mass-production environments.
2. Simple Operation: The process is relatively straightforward, with little training required for operators.
3. Consistent Results: Thread tapping delivers consistent and repeatable thread quality, making it ideal for standard thread creation.
4. Wide Range of Materials: Thread taps can be used to create threads in various materials, from softer plastics to metals like aluminum and steel.
5. Faster Thread Creation: Since tapping cuts threads in a single pass, it is generally faster than thread milling for smaller holes.

Cons of Thread Tapping

Despite its widespread use, thread tapping has limitations that can affect its suitability for certain tasks. The major drawbacks of thread tapping include:

1. Breakage Risk: Thread taps are prone to breaking, especially in harder materials or deeper holes. Once broken, removing a tap from a workpiece can be difficult and time-consuming.
2. Lack of Flexibility: Thread taps are limited to cutting specific thread sizes, which means you need different taps for each thread size you want to create.
3. Limited Hole Depth: Thread taps may struggle to create threads in very deep holes, as chips can accumulate in the hole and cause the tap to bind or break.
4. Less Adaptability: Taps are designed for internal threads only and cannot be used for external threading without additional tools.
5. Limited Customisation: Thread taps are generally designed for standardised thread sizes, making custom thread profiles more challenging to achieve.

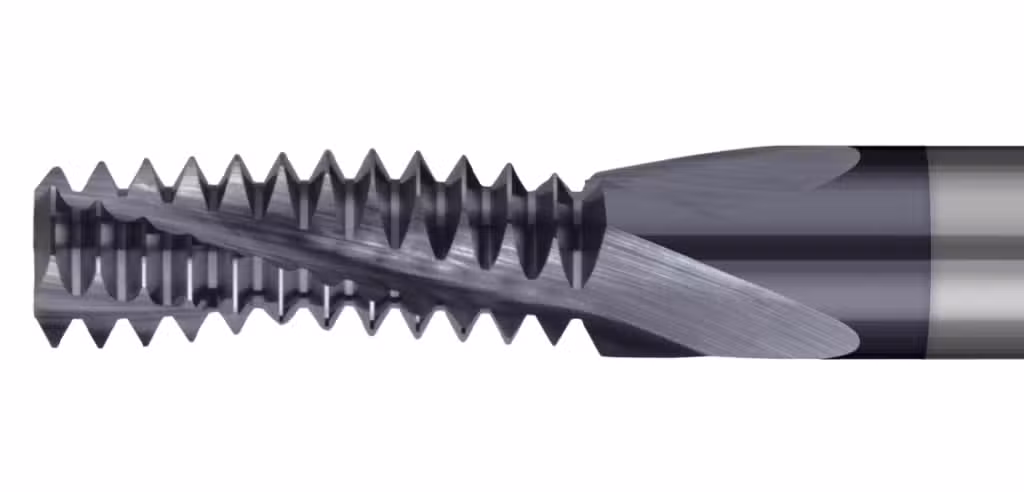

What is Thread Milling?

Thread milling is a more modern method of creating threads in both internal and external surfaces using a rotating thread mill. Unlike tapping, which cuts the threads in a single pass, thread milling machines the threads by removing material in multiple passes, using a helical interpolation process. The thread mill rotates and moves along the helical path, generating threads incrementally rather than all at once.

Thread milling is highly versatile and can be used for a variety of thread types, including metric, imperial, and custom thread profiles. It is commonly employed for more complex threading tasks that require precision and flexibility, such as in aerospace, automotive, and other high-tech industries.

Features of Thread Milling

Thread milling offers several distinct features that set it apart from traditional thread tapping. These include:

1. Precision Thread Creation: Thread milling offers high precision and control, ideal for creating both internal and external threads.
2. Versatility: Thread mills can cut a wide variety of thread sizes and types with a single tool, making them adaptable for different projects.
3. Helical Interpolation: The tool follows a helical path during milling, gradually forming the thread shape rather than cutting all at once.
4. Custom Threads: Thread milling is highly suited to creating custom threads and non-standard thread profiles.
5. High-Speed Machining: Thread milling is well-suited for high-speed operations and offers the potential for automation in production.

Pros of Thread Milling

Thread milling offers several advantages that make it the preferred option for more advanced threading tasks. Some of these benefits include:

1. Greater Flexibility: A single thread mill can be used to machine multiple thread sizes and types, eliminating the need to change tools for each size.
2. Reduced Breakage Risk: Unlike thread tapping, thread milling poses a much lower risk of tool breakage, especially in tough materials.
3. External and Internal Threads: Thread mills can be used for both internal and external threading, offering greater versatility in part production.
4. Precision in Large Diameters: Thread milling is ideal for large-diameter holes or deep-threading applications where tapping would struggle.
5. High Thread Quality: Thread milling delivers a high-quality surface finish and precise thread dimensions, making it a go-to choice for industries requiring superior thread quality.

Cons of Thread Milling

Thread milling, while highly efficient and versatile, also has its downsides. Below are some of the disadvantages of using thread milling:

1. Higher Tooling Costs: Thread mills tend to be more expensive than taps, especially when precision and high-performance materials are required.
2. Longer Cycle Times: Since thread milling cuts threads in multiple passes, it generally takes longer than tapping for small, shallow holes.
3. Complex Setup: The process of thread milling requires more sophisticated machines and programming, which can increase setup times and costs.
4. Not Ideal for Mass Production: Due to the slower thread cutting process and higher tooling costs, thread milling may not be as cost-effective for large production runs compared to tapping.
5. Specialised Equipment: Thread milling requires CNC machines with helical interpolation capabilities, limiting its use in less advanced machining environments.

Thread Tap vs Thread Mill: Differences Comparison

When it comes to creating threaded holes and surfaces in manufacturing, thread taps and thread mills are two prominent tools that serve different purposes and applications. Understanding the differences between these two methods is crucial for selecting the right tool for specific machining tasks. This comparison delves into their functionalities, advantages, disadvantages, and the contexts in which each method excels.

Functionality

Thread Tapping is a machining process that involves using a threaded tool known as a tap to create internal threads in pre-drilled holes. The tap is inserted into the hole and rotated, cutting threads into the material as it moves downward. This method is predominantly employed for creating standardised threads in softer materials like aluminum, brass, and mild steel.

Thread Milling, on the other hand, employs a rotating cutting tool known as a thread mill that machines threads by moving along a helical path. This method can create both internal and external threads and is capable of producing custom thread profiles. Unlike tapping, thread milling involves a multi-pass operation, allowing for greater flexibility and precision.

Thread Type and Capability

One of the most significant distinctions between the two methods is the type of threads they create. Thread tapping is primarily limited to internal threads. Taps are designed for creating standardised thread sizes and profiles, available in various metric and imperial measurements. This limitation necessitates the use of additional tools, such as dies, to create external threads.

In contrast, thread milling is more versatile. Thread mills can create both internal and external threads, making them suitable for a broader range of applications. This flexibility is advantageous in manufacturing settings where custom thread profiles are required, enhancing overall machining efficiency.

Machining Process

The machining processes involved in tapping and milling differ fundamentally. Thread tapping is a single-pass operation, where the tap cuts threads directly into the material. This method is generally quicker, particularly for small to medium-sized holes, allowing for efficient thread creation in high-volume environments.

Thread milling, on the other hand, involves a multi-pass machining approach. The thread mill machines the threads incrementally, allowing greater control over the final dimensions and surface finish. While often slower than tapping, this method enables the production of threads with intricate designs or tighter tolerances.

Tooling and Setup

The tools used for tapping and milling differ in complexity and cost. Taps are relatively inexpensive and straightforward to use, requiring minimal setup. This simplicity makes tapping accessible for operators of varying experience levels.

Thread mills are generally more expensive and require a CNC machine with helical interpolation capabilities. The setup for thread milling is more complex, necessitating skilled operators and advanced programming. While offering versatility, the initial investment and operational complexity can be barriers for some manufacturers.

Precision and Finish

Precision is crucial in machining, and both tapping and milling have strengths in this area. Thread tapping produces consistent results but may not achieve the same level of precision or finish as milling. The aggressive nature of tapping can lead to inaccuracies if not managed properly.

Thread milling is known for its high precision. The gradual material removal process and the ability to make fine adjustments allow for superior control over dimensions and surface finish, particularly beneficial in industries like aerospace and automotive.

Material Compatibility

The materials suitable for each method vary. Taps are best for softer materials but may struggle with harder metals, increasing the risk of tool breakage, especially in deeper holes. In contrast, thread mills can handle a wider range of materials, including hardened steels. Their gradual process mitigates breakage risks, making them suitable for tougher applications.

Production Efficiency

Production efficiency is another critical factor. In mass production, tapping is often more efficient due to faster cycle times for smaller holes and lower tooling costs, making it preferred for rapid thread creation. However, thread milling excels in scenarios requiring custom threads or larger diameters. While it may not match tapping’s speed for smaller applications, its flexibility can reduce the need for multiple tools, providing significant advantages in varied threading solutions.

Contrast Table

Feature	Thread Tap	Thread Mill
Thread Type	Internal only	Internal and external
Material Removal	Single-pass thread cutting	Multi-pass thread cutting
Tool Flexibility	One tap for each thread size	One tool for multiple thread sizes
Risk of Tool Breakage	High, especially in hard materials	Lower risk due to multi-pass operation
Precision	Standard precision	Higher precision and surface quality
Cycle Time	Shorter for smaller holes	Longer due to multiple passes
Tool Cost	Lower	Higher
Setup Complexity	Simple setup and operation	More complex programming required
Suitable for Mass Production	Yes	Not as cost-effective for high volume
Custom Thread Profiles	Limited to standard sizes	Highly customisable
Ideal for Large Diameters	Less suitable	Excellent for large-diameter threading

Conclusion

Thread tapping and thread milling are both effective for creating threads, each with unique advantages. Thread taps excel in high-speed, cost-effective internal thread creation for small to medium-sized holes, particularly in mass production, but are prone to breakage in tougher materials.Conversely, thread mills offer flexibility, precision, and the ability to cut both internal and external threads but require more advanced equipment and are generally slower. For high-precision threading solutions, Zintilon provides top-tier thread milling and tapping services, ensuring customised profiles and reliable results, tailored to meet your industry-specific needs efficiently and cost-effectively.
